Specification
  • Single Phase Range: 0.37kW (0.5HP) to 2.2kW (3HP)
  • Three Phase Range: 0.37kW (0.5HP) to 75kW (100HP)
  • Pole: 2 (2800RPM) - 4 (1440RPM) - 6 (960RPM)

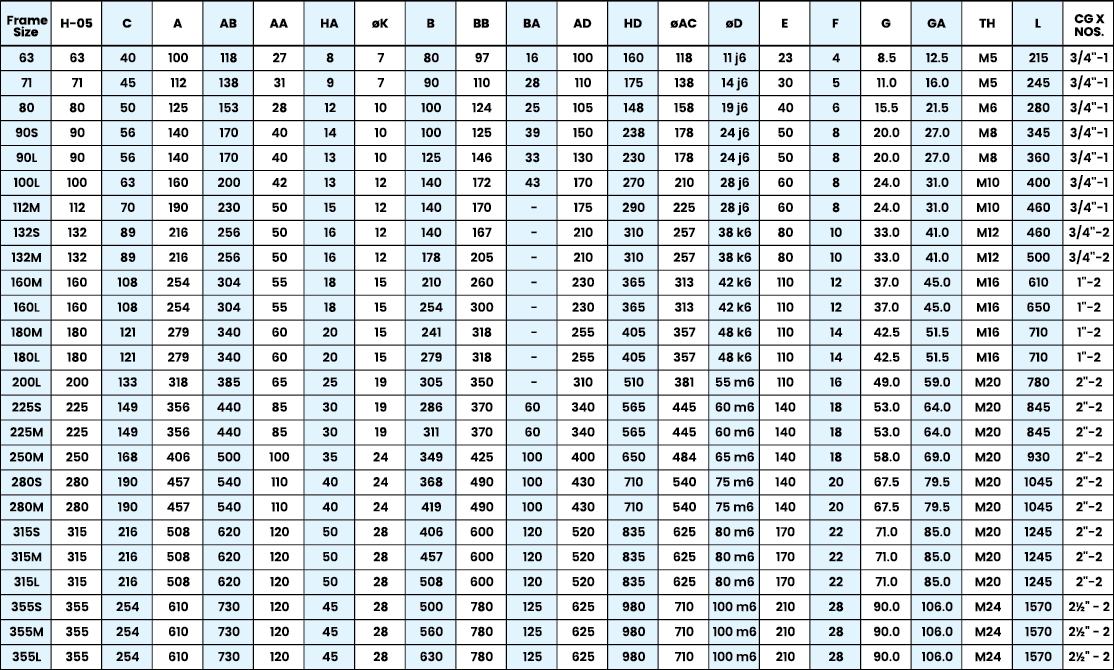

  • Frame Sizes: 71 to 250 Frame

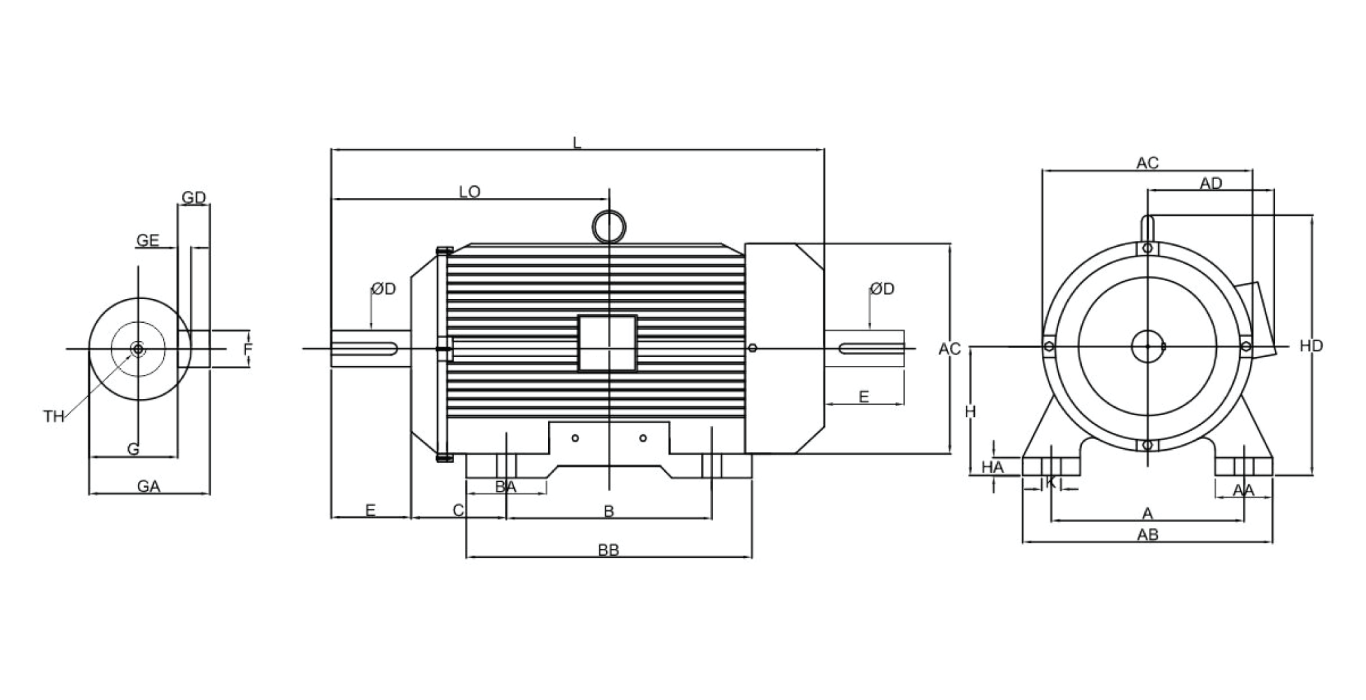

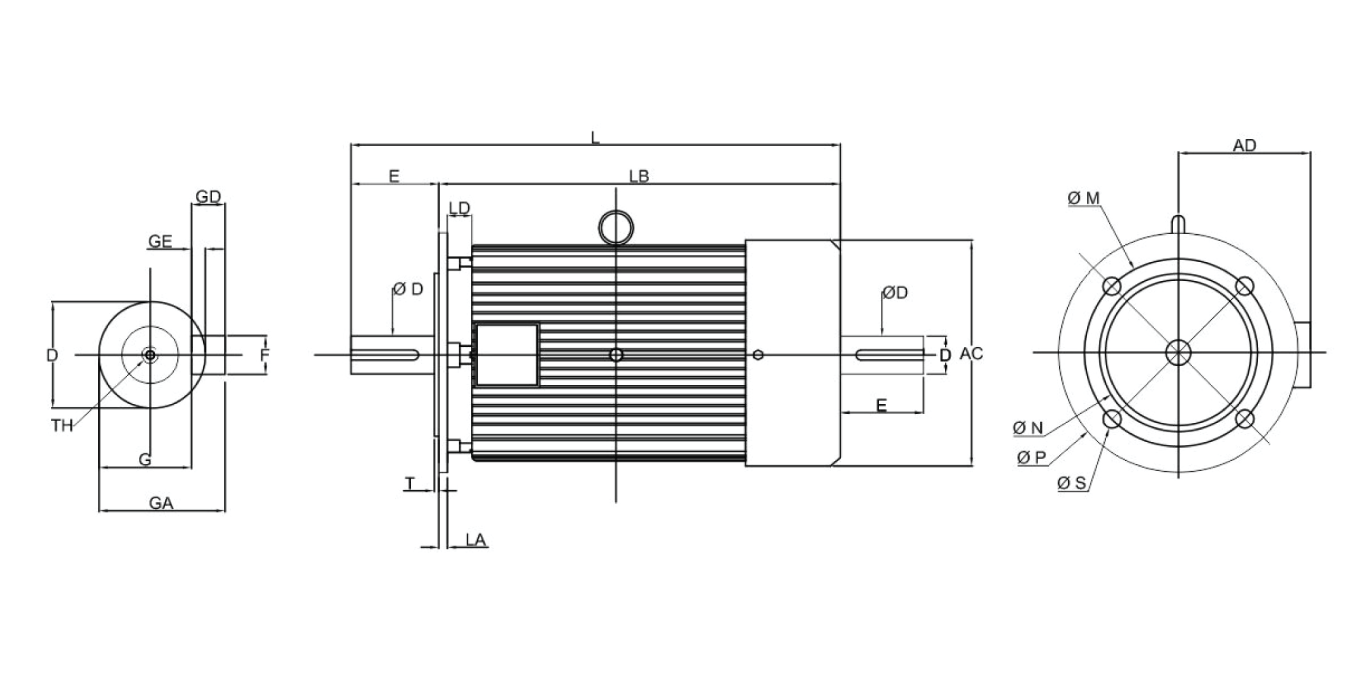

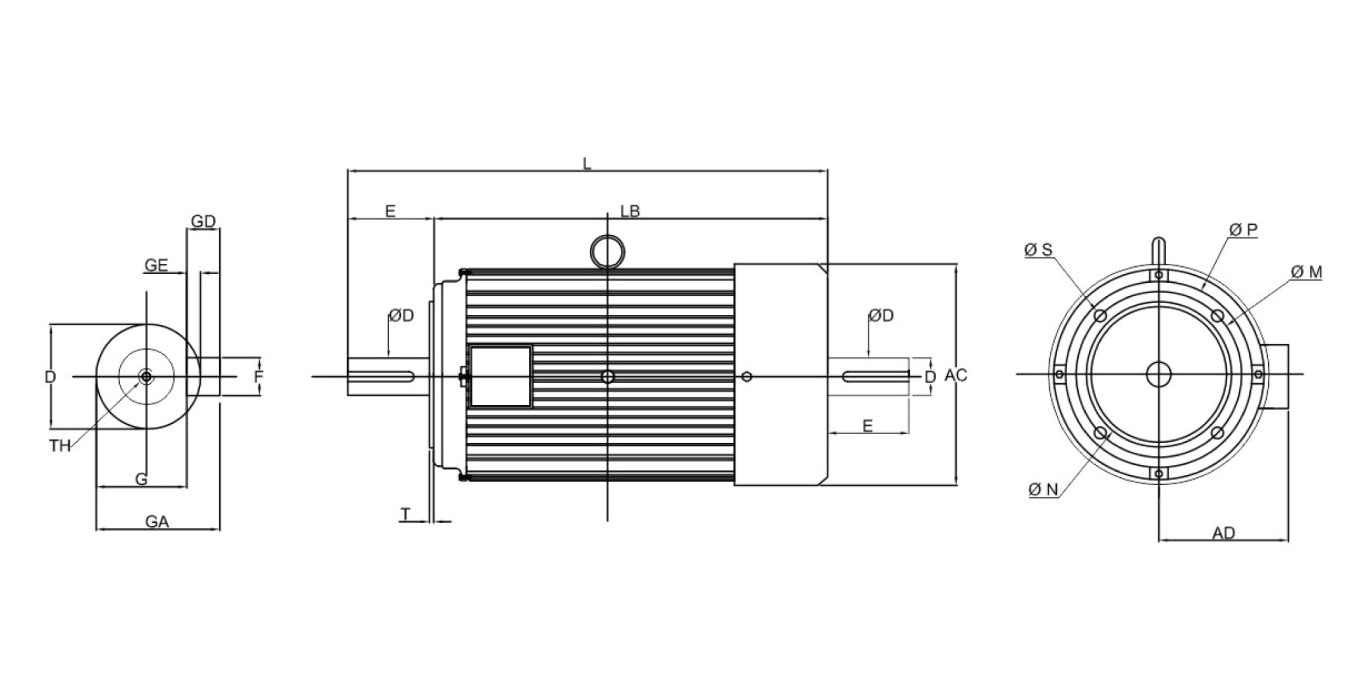

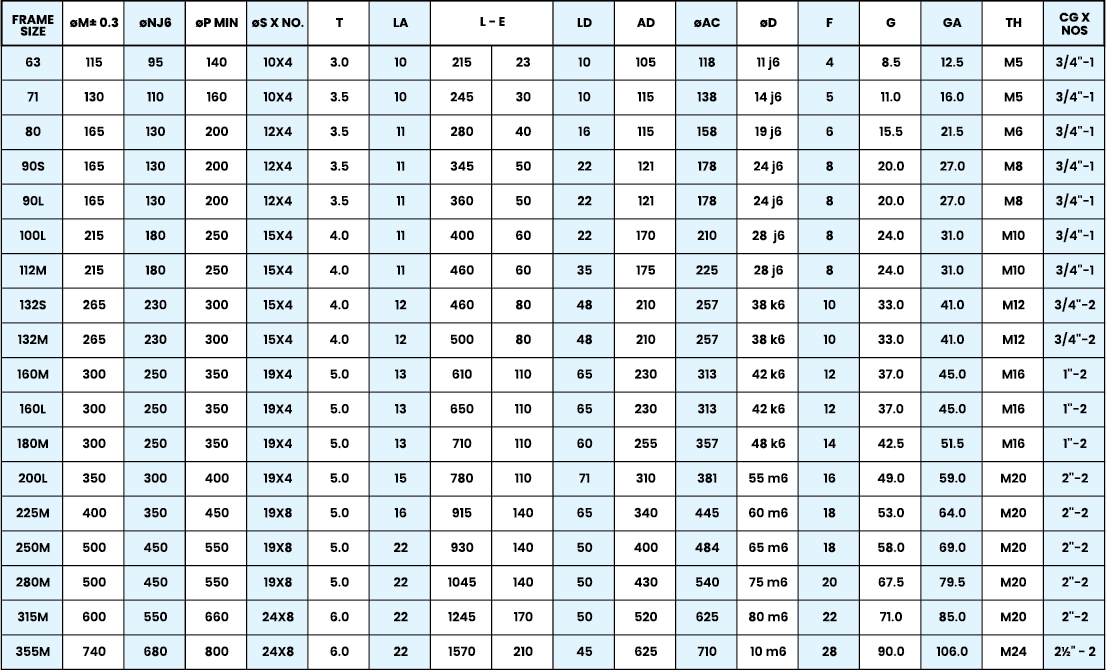

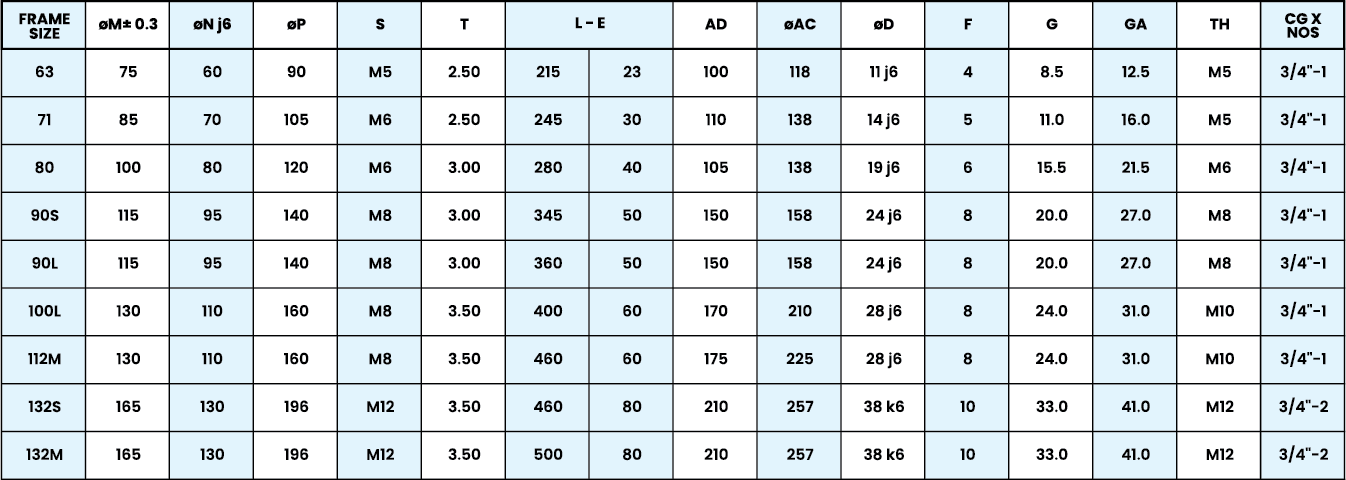

  • Construction: B3 (Foot Mounting), B5 (Flange Mounting), B14 (Face Mounting), B35(Foot cum Flange Mounting)
  • Insulation Class: F
  • IS - 12615 : 2018 | CM/L no.:3806867
  • Equipped with SKF Bearings
PLEASE PROVIDE CONTACT INFORMATION TO RECEIVE PERFORMANCE CHART VIA EMAIL
